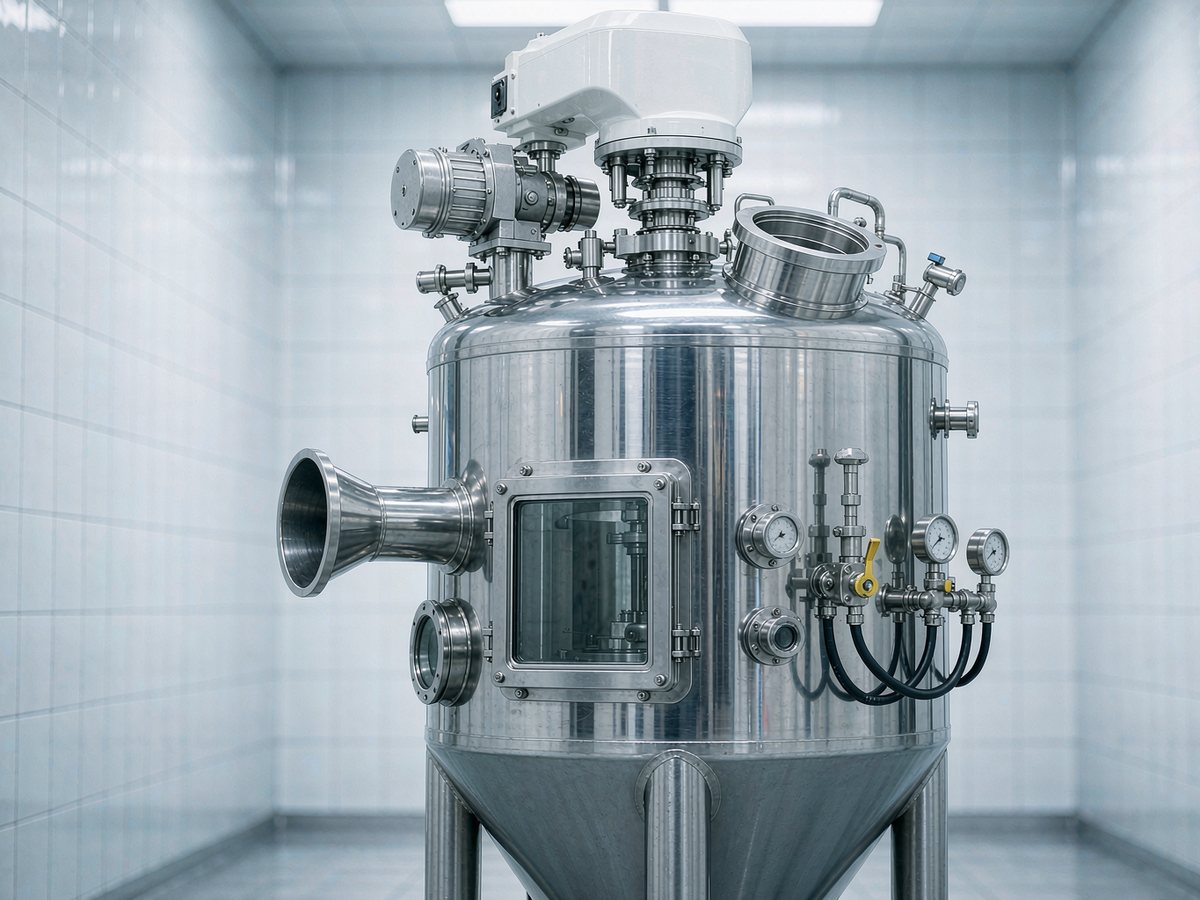

Jacketed Reactor GF-J2000
Model GF-J2000
Jacketed reactor GF-J2000, 2000L, SS304/316L, steam/thermal-oil heating and cooling jacket. -0.1/0.3 MPa. Specifications and quotation.
Material: SS304 / SS316L
Technical Specifications
| Capacity | 2000 L |
| Material | SS304 / SS316L |
| Inner shell pressure | -0.1 / 0.3 MPa |
| Jacket pressure | 0.3 MPa |
| Agitator motor | 5.5–7.5 kW |
| Jacket medium | Steam / hot water / thermal oil |
| Voltage | 380V (customizable) |
| Dimensions | Ø1300 × 1500 mm |
Parameters are reference values — confirm final specification with our engineering team before ordering.
Key Features
✓Full / limpet-coil / dimple jacket options
✓Precise PID temperature control
✓Insulation layer to reduce heat loss
✓Anchor, propeller or high-shear agitator
Typical Applications
Frequently Asked Questions
What jacket types are available?
We supply full jacket, limpet coil (half-pipe) jacket and dimple jacket. Limpet coil gives faster heat transfer for high-temperature or high-pressure duty.
Can it both heat and cool?
Yes. The same jacket circulates heating medium (steam/thermal oil) or cooling medium (chilled water/brine) depending on the process step.
Product Gallery
More Jacketed Reactor
Get a Custom Quotation
Tell us your requirements and our engineering team will recommend the right jacketed reactor for your process.
